Cybershield offers widest range of EMI/RFI shielding solutions on plastic components and systems with electroless plating and electroplating, conductive paint as well as EMI gasket dispensing. Cybershield EMI/RFI systems offer shielding effectiveness from 60-120 dB for frequencies up to 10 GHz.

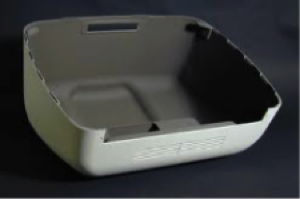

Electrostatic discharge can be prevented with application of conductive coating onto plastic components. Conductive Coatings with plating or conductive paints have demonstrated excellent ESD prevention results.

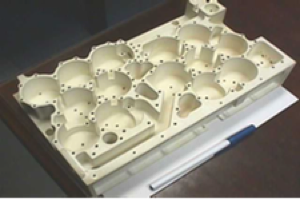

Plated Plastic Antenna / Waveguide / RF Filter
Light weight, low cost plastic antenna and waveguide systems can be manufactured to exact customer requirements. Electroless plating can provide the needed surface conductivity for excellent antenna/waveguide performance. Molded and plated waveguides can replace heavier and higher cost machined or die cast metal parts.
Chrome Plating Plastic
Cybershield offers bright chrome plated plastic with environmentally friendly and RoHS Compliant trivalent chrome plating. Chrome plating capabilities meet automotive exterior specifications and can be produced in prototype quantities as well as high volume production requirements.
Metal Barrier Layers on Plastic
Protecting plastic components from harsh operating environment can be achieved with plating. Cybershield can deposit plating systems (metals and thickness) tailored to protect the plastic component from harsh chemicals, fumes, abrasion and even high temperatures.

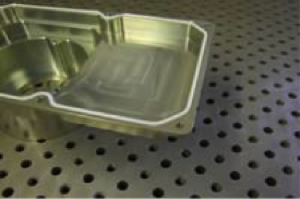

Cybershield robotically dispenses Form-In-Place Conductive Gaskets onto flat surfaces, into grooves and top of walls with landing area as narrow as 0.025″ (0.625 mm). EMI gaskets shield electronics inside device, prevent interference within the electronic device, from one compartment to another, and control radiated emissions.
Cybershield offers trivalent, RoHS and ELV compliant aluminum chromate conversion coatings for corrosion protection of aluminum components per MIL-DTL-5541. Additionally, we deposit electroless nickel plating on aluminum that provides uniform, hard and lubricious coatings per AMS-C-26074, AMS 2404, MIL-C-26074 and ASTM B733.
CARC Paint Application
Cybershield offers Mil Spec CARC painting services, including MIL-DTL-64159, MIL-PRF-22750, and MIL-C-85285 to name a few. Substrates include plated plastic as well as aluminum and steel. Cybershield offers both manual and robotic spray application methods to support prototype and low volume quantities as well as high volume production requirements.
Value Added Services
Cybershield offers value added services to streamline customers’ supply chain, improve quality and reduce costs. Beyond our core plastic and aluminum finishing capabilities, services include injection molding, decorative paint, insert installation sonic welding, gasket installation, part marking, precision hole tapping and mechanical assembly services.
Cybershield is industry leading supplier of metallized plastic solutions for EMI shielding, ESD control, chrome plated finishes, Mil-spec finishes, including CARC coatings. Cybershield is a recognized world leader in conductive coating on plastic. This includes our plating plastic capabilities where we can plate plastic resins from ABS to polycarbonate, to nylon, to liquid crystal polymer, epoxy, PEEK, PEI, and graphite composites to name a few. We also offer manual and robotic application of conductive paint. We work with design engineers at our customers in wide range of industries, including:
- Consumer Electronics
- Telecommunications Equipment
- Industrial Equipment
- Medical Devices
- Military/Aerospace Equipment
Download the Cybershield Brochure to obtain more information about metallized plastics and other manufacturing services offered by Cybershield.
See how customers utilize Cybershield plastic plating, conductive spray paint and conductive gasket capabilities in EMI/RFI Shielding applications:
|PDA Plated Plastic Shield||Plated Connectors|
|Plated Plastic RF Filter Housing||Telecom Switch Faceplate - Plated & Decorative Paint|
|Plated Plastic Mobile Phone Antenna||Plated Welding Helmet Shield|
|Military Electronics Equipment||Conductive Gasket|
Cybershield has over 20 years of experience metallizing plastics for wide range of industries, customers, end-use environments, production volumes and cost budgets. To support your design requirements, we can:
- Share our experience and insight into what design factors lead to successful metallized plastic applications
- Provide design assistance, including resin selection and mechanical design to lead to cost effective applications
- Fabricate prototypes for customer evaluation and testing
- Supply metallized plastic components and systems to meet your requirements
- Support production requirements and streamline supply chain with turnkey capabilities
- Injection Molding
- Plastic Metallization
- Mechanical Assembly Services
Contact Cybershield for Technical Specifications, EMI & RFI shielding effectiveness data, Process Capability, and Application Assistance
RoHS and REACH
- All materials contained in Cybershield plating, conductive paint and conductive gasket systems comply with European Union Directive 2002/95/EC, “Restriction of Use of Hazardous Substances (RoHS)”.
- Cybershield certifies that all plating conductive paint and conductive gasket materials do not contain any of the materials or substances specified as Substances of Very High Concern (SVHC) as referred to in the EU REACH initiative.
Contact Cybershield to obtain RoHS and/or REACH certification.
